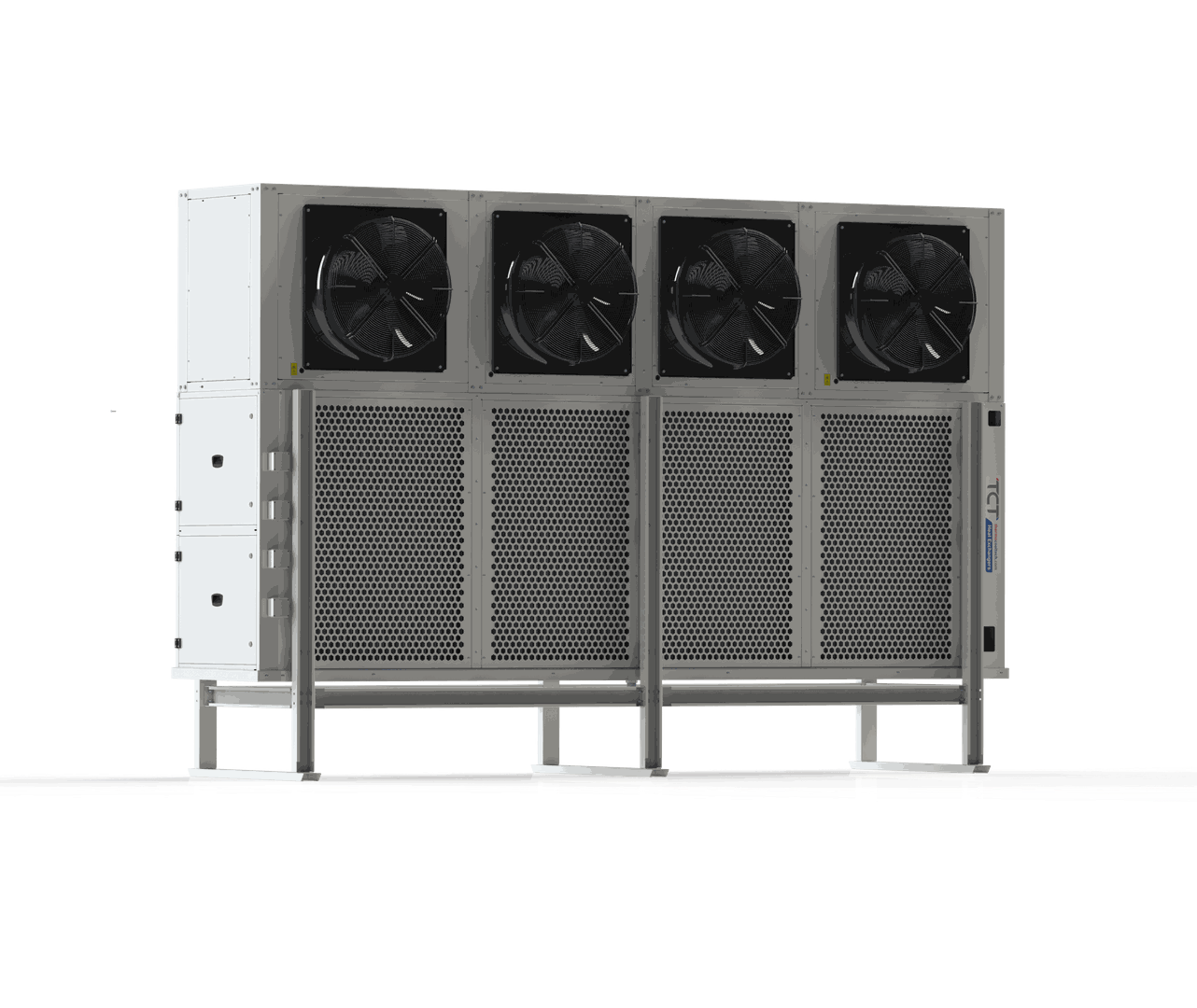

Nominal capacities are calculated considering Eurovent (EN327) standards, for condenser temperature Tc=40°C, air inlet temperature Tai=25°C, temperature difference Δt=15K and R404A gas at sea level.
Copper pipes Ø5/16”, Ø3/8”, Ø1/2” pipe thickness is 0.35 mm.
Fin material is aluminum, thickness is 0.12 mm.
The distance between the lamellae is 2.1 - 2.3 - 2.5mm.
Input - output collector material is copper.
Highest working pressure Ps = 33 Bar.
Casing is made of galvanized steel painted RAL 7044.
Each fan compartment is separated from the others and the reverse rotation effect of stopped fans is prevented.
Suitable for working with R404A, R507, R134A, R407C, R407, R22, R407A refrigerants.

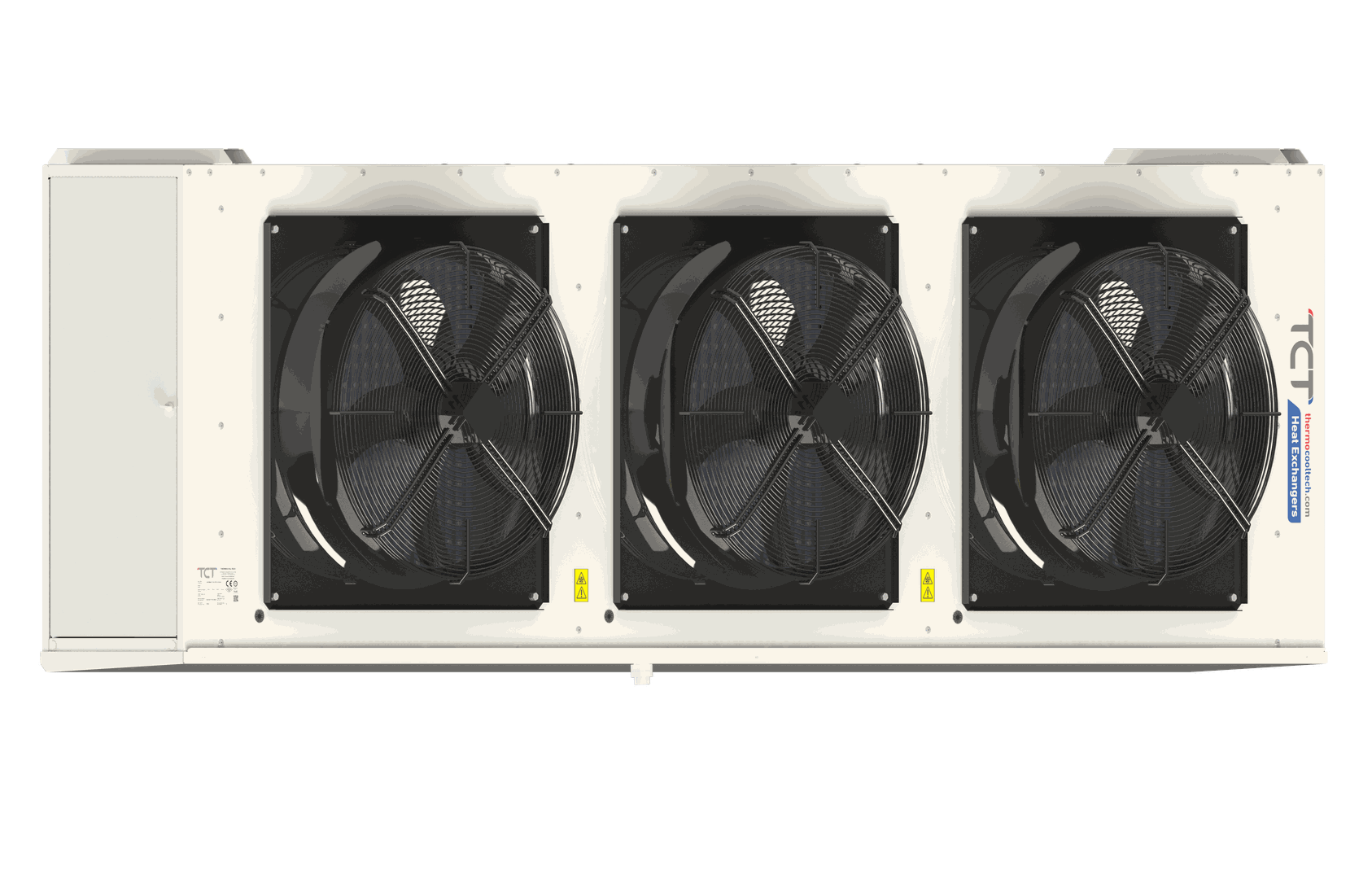

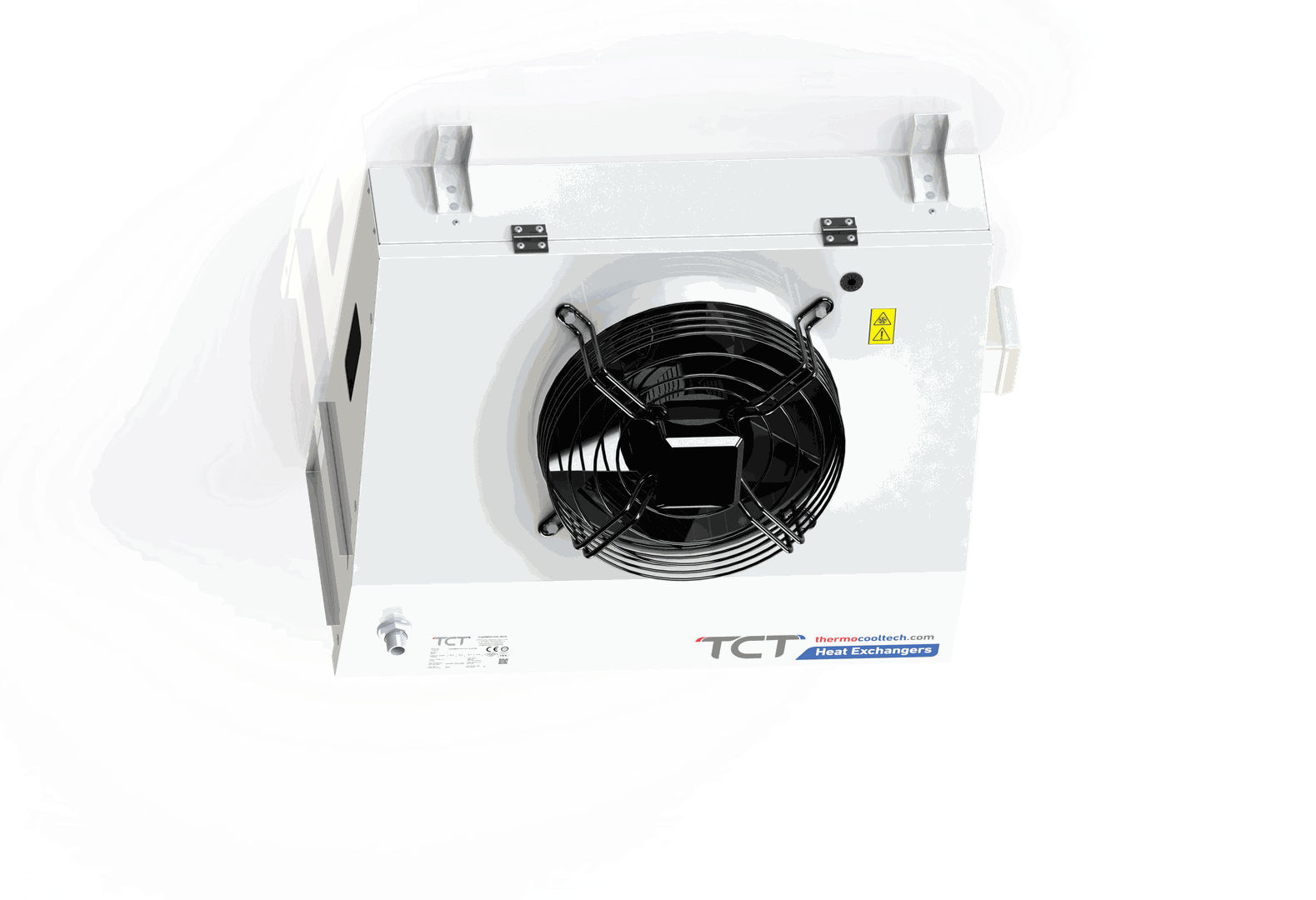

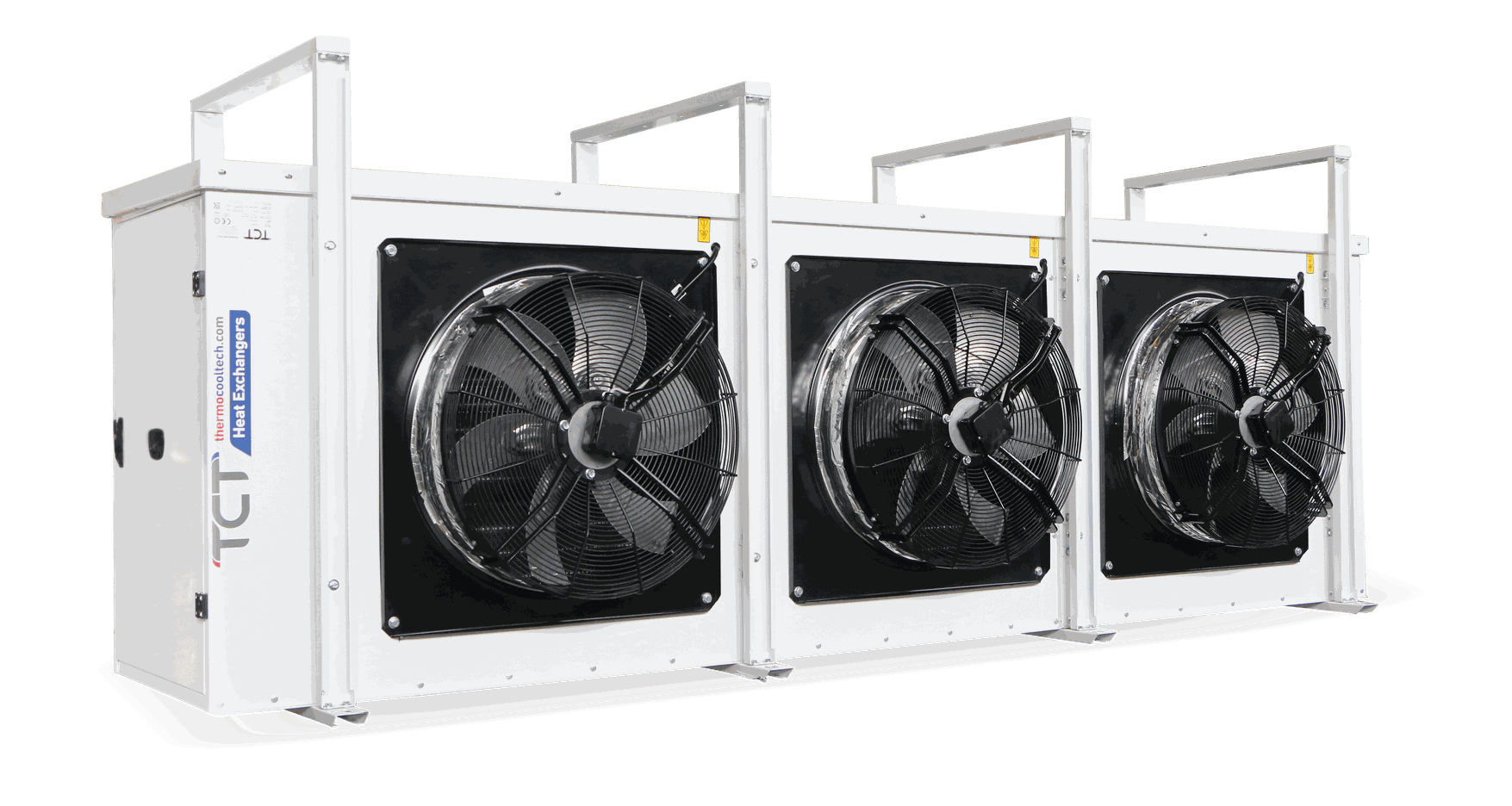

Evaporator Series
Nominal capacities taking into account Eurovent (EN 328) standard Calculated for R404A gas under SC1-SC2-SC3-SC4 conditions.
It changes depending on the difference in temperature Te (ΔT = Tr – Te). farkına bağlı olarak değişir (ΔT = Tr – Te).
Copper pipes are Ø3/8” (0.35 mm), Ø1/2” (0.35 mm) and Ø5/8” (0.40 mm).
Fin material is aluminum, thickness is 0.20 – 0.25 mm.
The distance between the lamellae is 4-6-7-8-10 mm.
The input and output collector material is copper.
The highest allowable working pressure Ps=22 Bar.
With refrigerants R404A, R507, R134A, R407C, R407, R22, R407A It is suitable for working
The casing is painted on galvanized steel, RAL 9016.
